Goodfellow AFB - Safety Pad Trainer
Project Overview

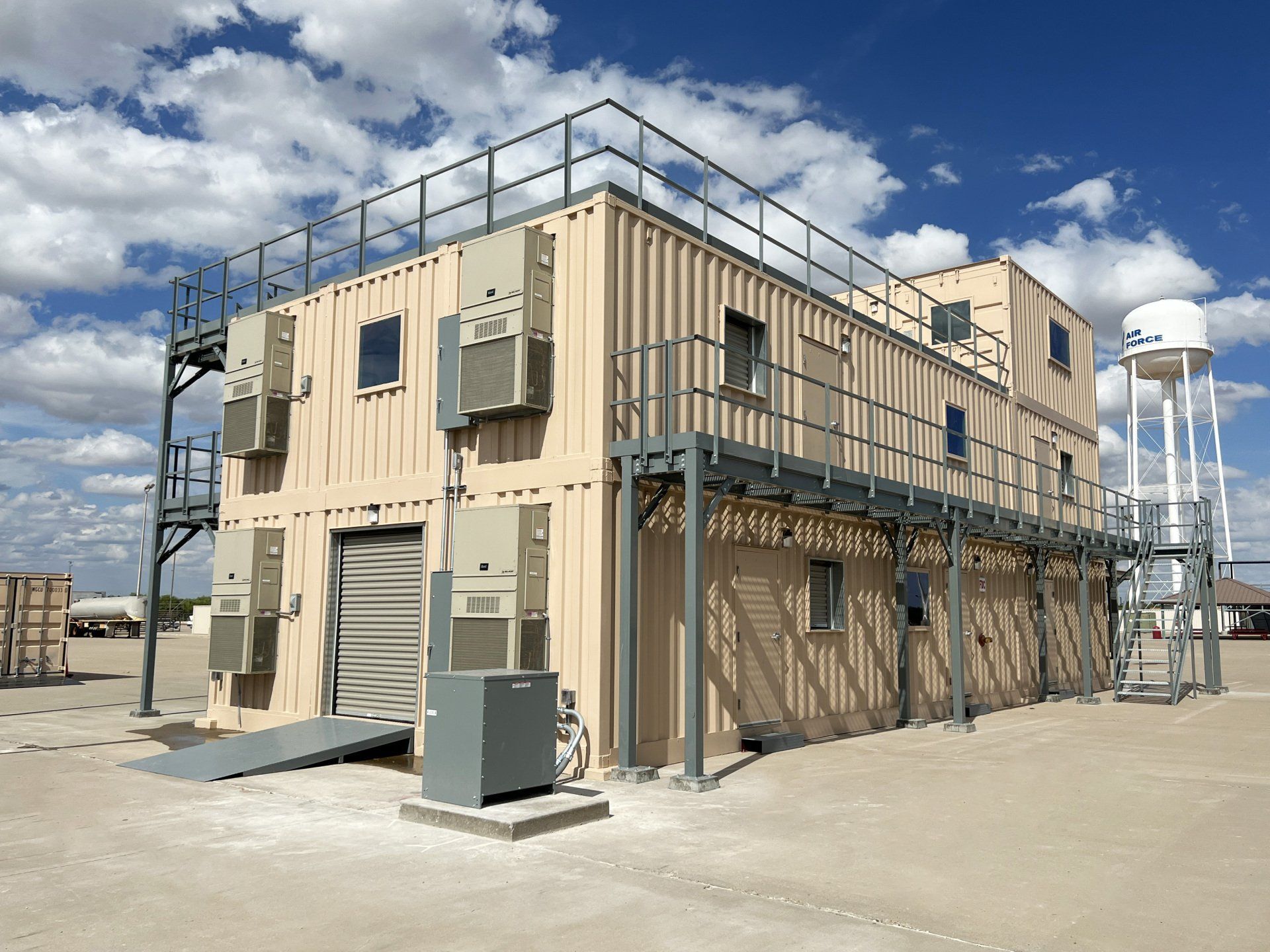

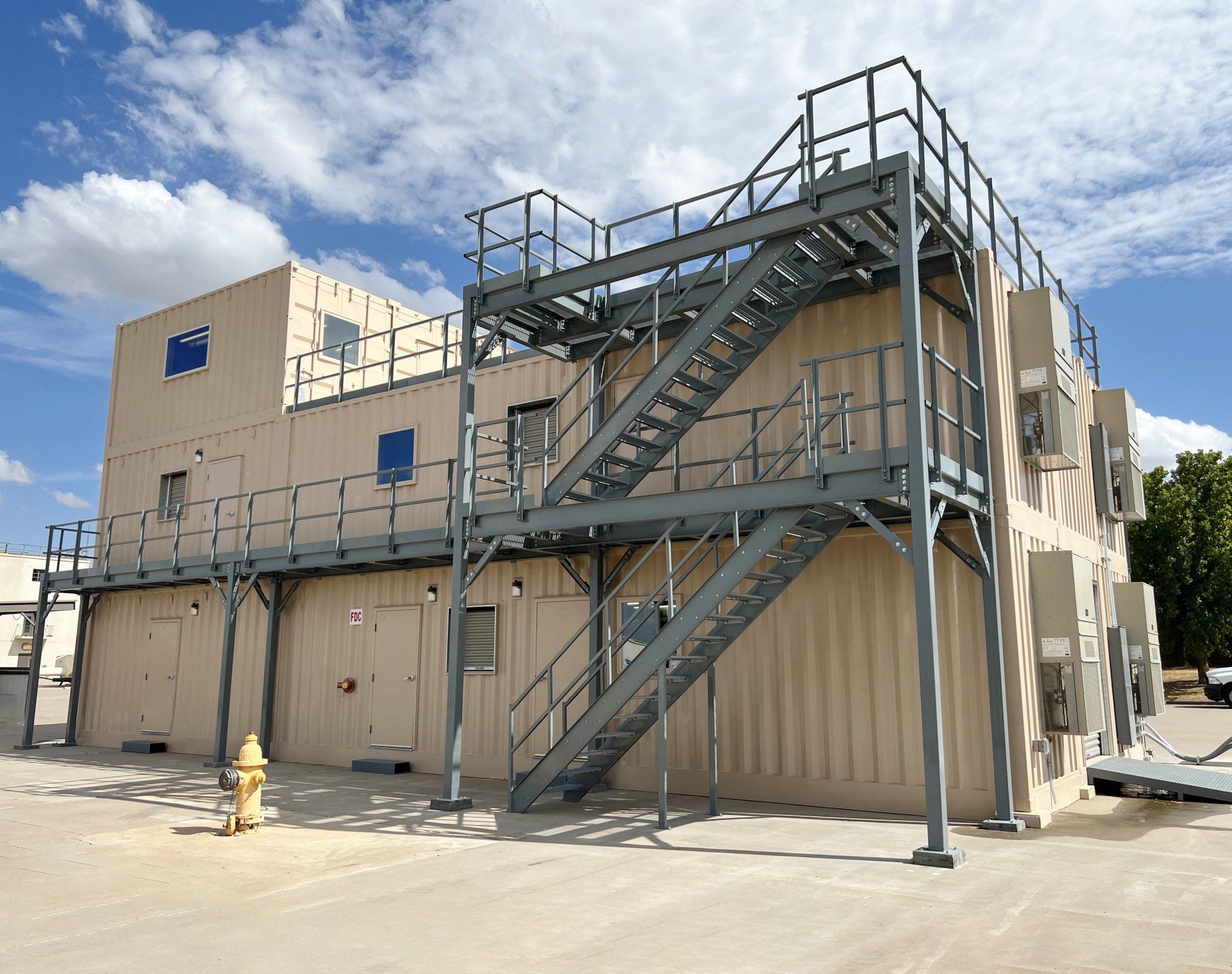

MCI designed and installed a three-story modular metal structure totaling 3,360 SF that will serve as a Safety Pad Trainer at Goodfellow Air Force Base.
The Safety Pad Trainer will be used for firefighting hose advancement/safety training.
The structure is comprised of six (6) 8'-0" X 40'-0" High Cube Tripper ISO Shipping Containers, and nine (9) 8'-0" X 20'-0" High Cube Tripper ISO Shipping Containers. There is HVAC throughout the entire structure.

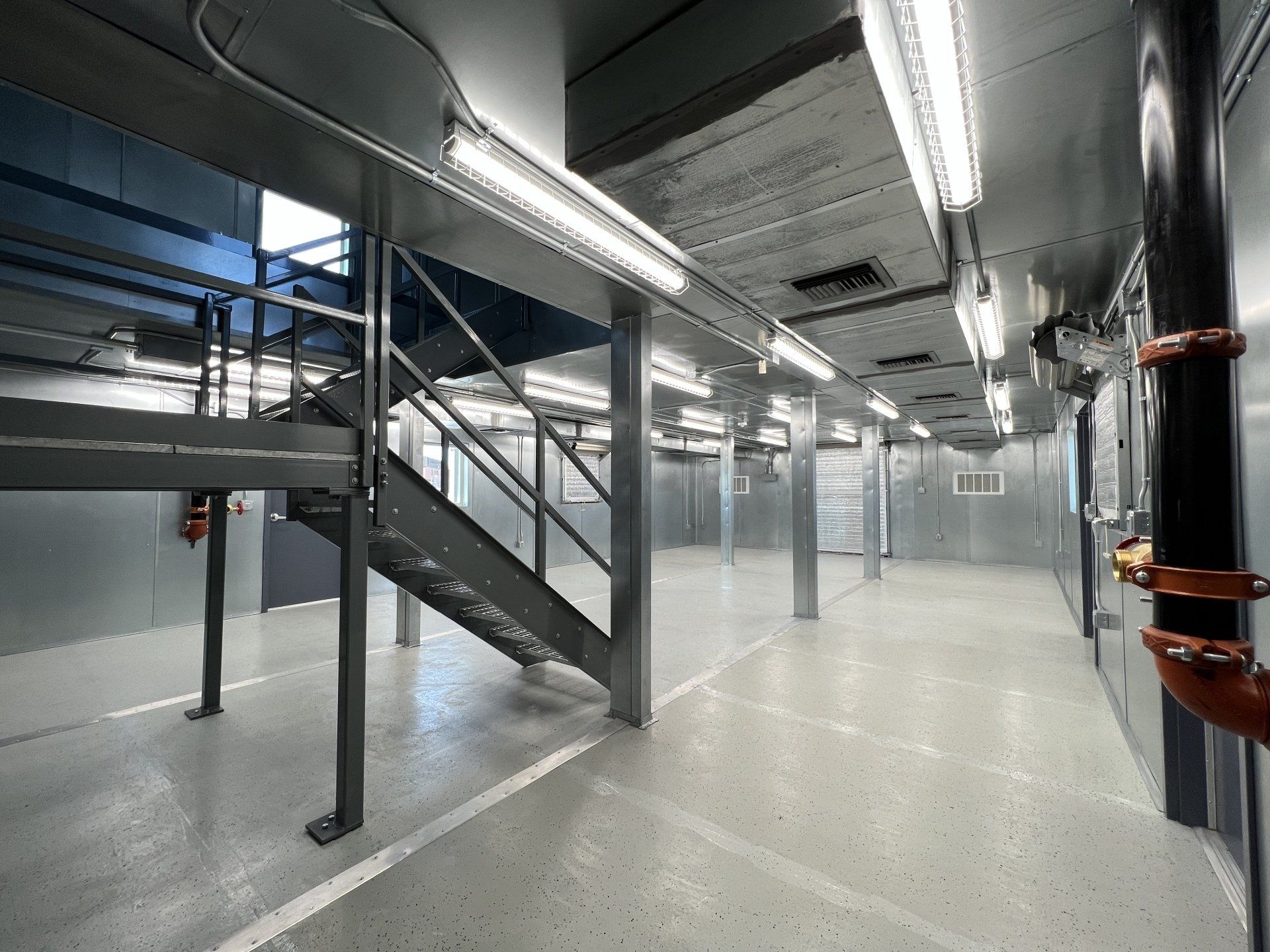

The first floor includes a 960 SF open office area and a 480 SF rehabilitation center with stairways and landings leading up to the second, and third floor.

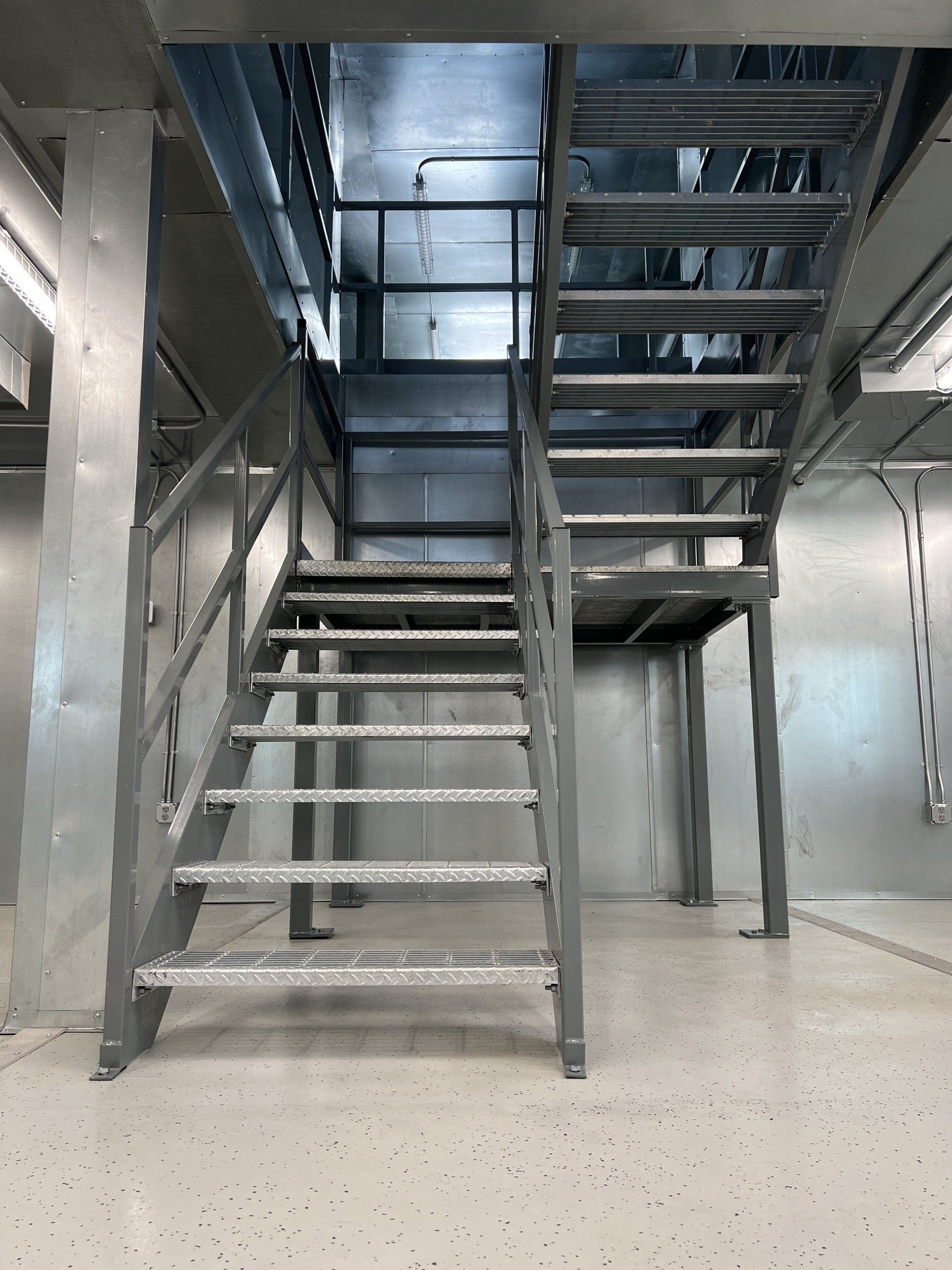

The second floor includes a 1,140 SF open office area and stairways and landings leading up to the third floor.

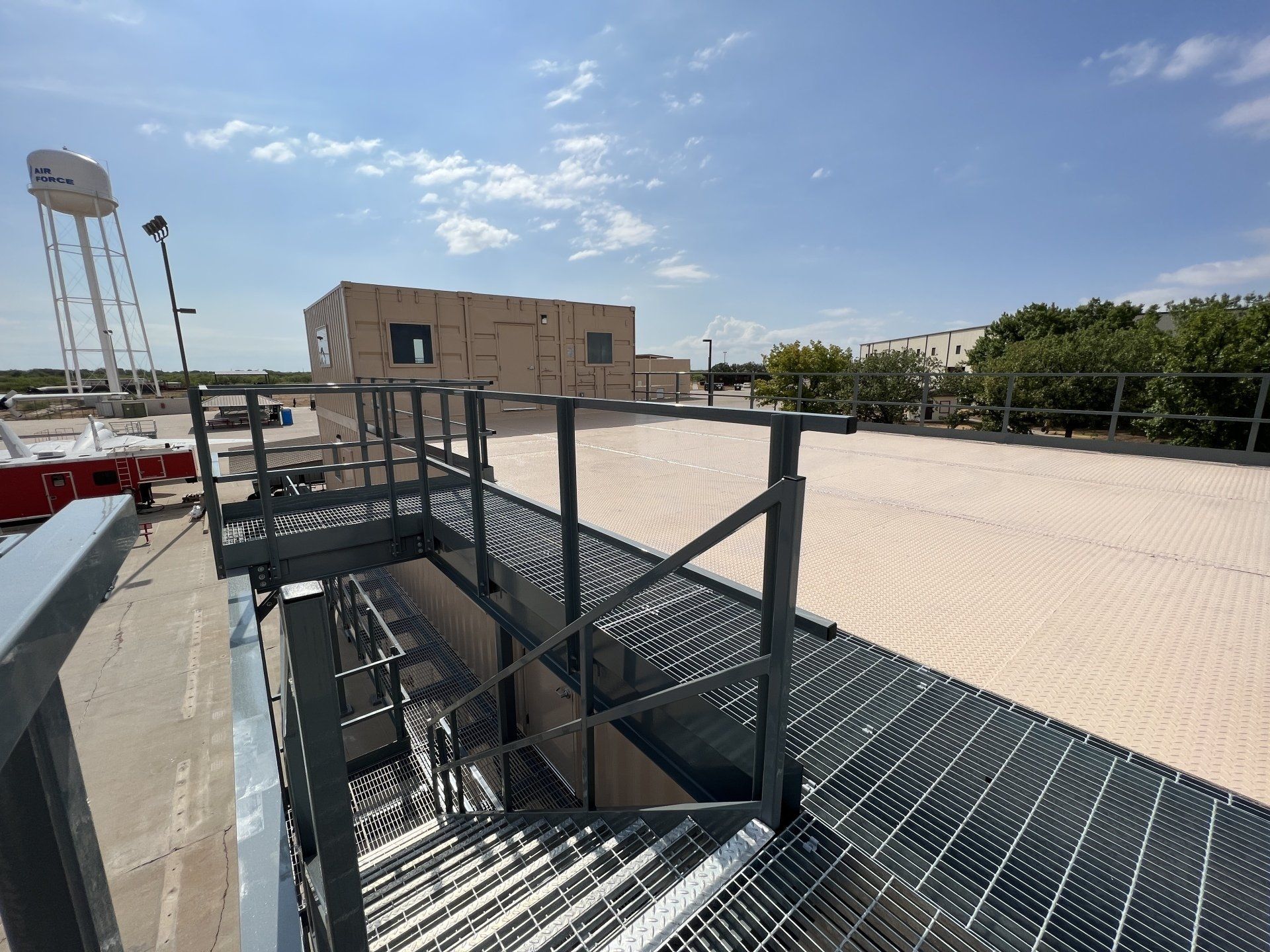

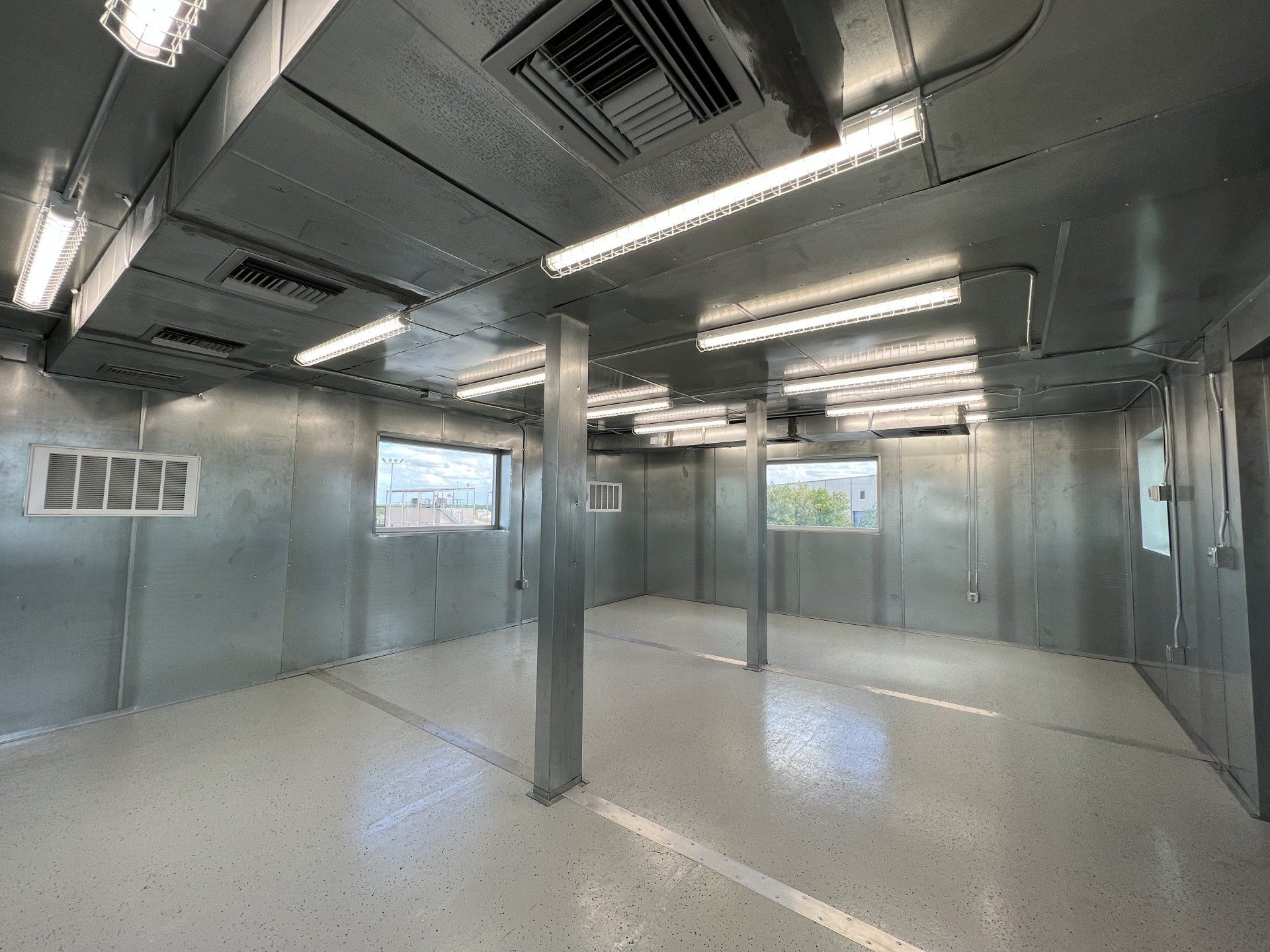

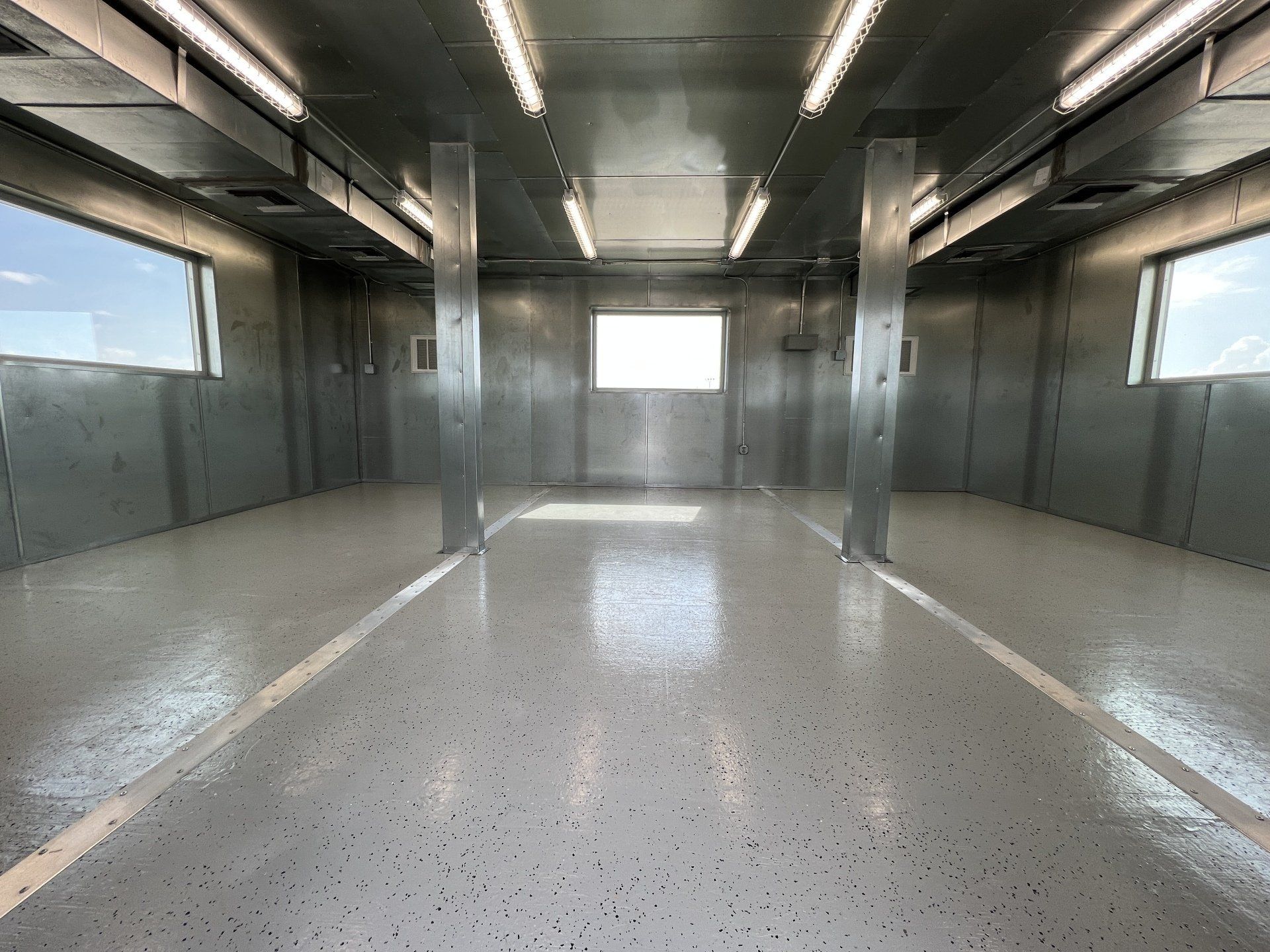

The third floor includes a 480 SF observation room, a 950 SF observation deck area, and stairways leading down to the second floor.

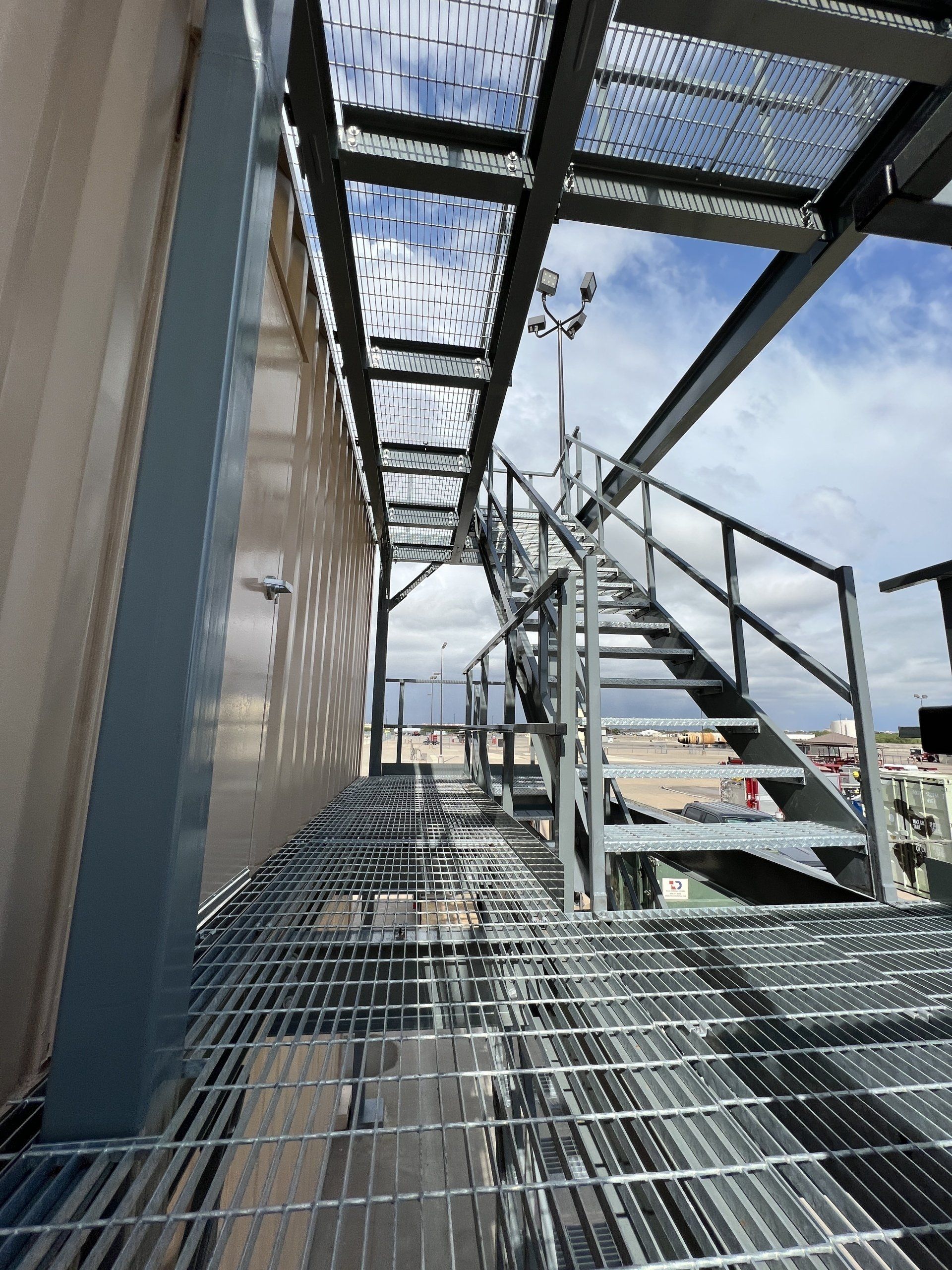

The scope of work included: Electrical, HVAC, Standpipe for Hose Connection. The Standpipe is for training purposes and no water is connected to the standpipe. Stairways and Mezzanine.
Project Type
Government
Building Type
Commercial Modular Structure
Location
Goodfellow AFB, San Angelo, TX
